OPS-J is for up to 200 MPa pressure generation and adjustment systems that required very accurate precise pressure regulation.
OPS-J is pressure comparator and comparison tester that using analog pressure gauge and digital pressure gauge for standard comparator. It can control precise pressure and dead-weight tester’s pressure generate and precise pressure control.
OPS-J using priming pump for primary pressure then screw type hand pump control the precise pressure. Priming pump generates pressure by lever type handle and screw type hand pump control the main pressure. A torque of the lowest among the same class and during long-term use, it will needs less power in high pressure up to more than 200 MPa. OPS-J has 3 of test port for various purposes.
Specification
| Features | Details |
|---|---|
| Maximum Pressure | up to 200 MPa or more |
| Variable Volume | 3 cc |
| Oil Reservoir Volume | 250 cc |
| Test Port | 9/16″ UNF Cone & Thread (AE F250C, HIP HF4) |
| Weight | 12 kg |

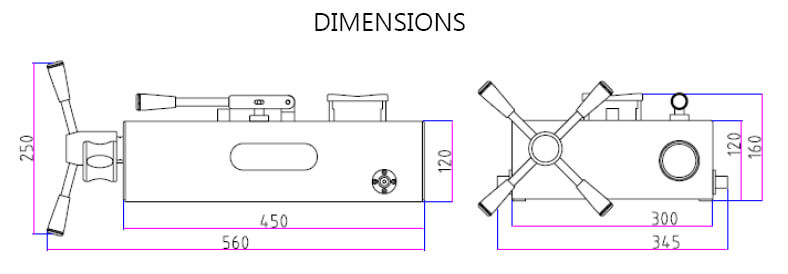

| Size | 345 mm(W) x 560 mm(D) x 160 mm(H) |
| Media | Oil |
| Option | Sebacate Oil 1 Liter |
