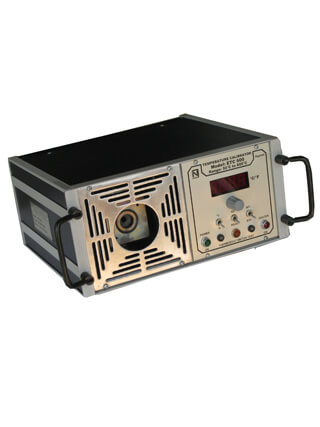

Model ETC 600 (Low & Medium Temperatures)

Economy Medium Temperature Dry Block Calibrator capable of Temperature Measurement from Ambient to 600°C with an Accuracy of ±0.15% FS.

Medium Temperature Dry Block Calibrator

Portable / Bench-top Heavy Duty Models with an array of Interchangeable / Single – Multihole Thermowells

Ideal for quick / fast Site Calibration of RTDs / TCs / Bi-Metal Thermometers, Temperature Switches / Indicators etc. in Industrial & Marine Applications

Meets the requirements of “Safety of Life at Sea” (SOLAS IX Maintenance Regulations) & “International Safety Management “ (ISM)

Specification ETC 600 :

Features Details
Range 50°C to 600°C
Resolution 1°C
Display Digital Display, 3½ digit LED
Accuracy ETC 600 : ±0.1% F.S. + 1 digit
ETC 600-2 : ±0.15% F.S. + 1 digit
Stability* ±0.5°C
Temperature Readout °C / °F Switchable
Well Diameter 25 mm
Immersion Depth ETC 600 : 110 mm
ETC 600-2 : 190 mm
Heating Time ETC 600 : 18 Minutes (approx.)
ETC 600-2 : 40 Minutes (approx.)
Cooling Time ETC 600 : 60 Minutes (approx.)
ETC 600-2 : 100 Minutes (approx.)
Switch Test Facility / Supply Provided / 7 VDC Nominal
Interchangeable Thermowells Single hole to suit 1/4″ & 1/2″ Probes – Standard
Other Sizes / Multihole – optional
Analog Output (F.S.) 10 mV / °C
Power Supply / Consumption 230V AC / 50 Hz / 1200 Watts
Instrument Dimensions (L x D x H) ETC 600 : 270 x 124 x 240 mm
ETC 600-2 : 270 x 124 x 306 mm
Instrument Weight ETC 600 : 7 Kgs.
ETC 600-2 : 9 Kgs.
Standard Delivery:
  1. Basic Instrument
  2. Test Leads
  3. Mains Cable
  4. Insertion Tubes (to suit 1/4“ & 1/2“ probes)
  5. Tool for Insertion Tubes
  6. Spare Fuses
  7. Traceable Calibration Certificate
  8. Instruction Manual
  9. Carrying Case
Optional accessories :
  1. Additional Thermowells / Insertion Tubes (to choose from) :
    1. Single hole standard sizes to suit :
      1. 1/8”
      2. 1/4”
      3. 3/8”
      4. 1/2”
      5. 3/4”
      6. 7/8”
      7. 3
      8. 4
      9. 5
      10. 6
      11. 7
      12. 8
      13. 10
      14. 12
      15. 13
      16. 15
      17. 17
      18. 19
      19. 21 mm probes
    2. Multihole (Typical) : (1×6 + 1×8), (3×6), (1×10 + 1×4) mm
  2. 115 VAC / 60 Hz Power Supply
  3. Calibration Certificate from NABL Accredited – as per ISO/IEC 17025:2005 Laboratory
